Neon Lamps T4     T5     T6

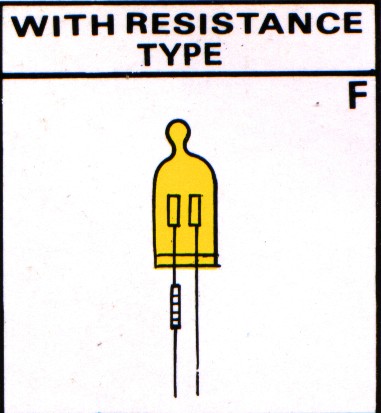

T4 T5 T5 T6 T6 With Resistance Type

* Other sizes or lengths are available to meet your specification requirements.

Lamp No. Breakdown Voltage Max (AC) Current (MA) Series Resistance K (OHM) Average Lab Life (h) Bulb Diameter (mm) Bulb Length (mm) Figure
110V 220V

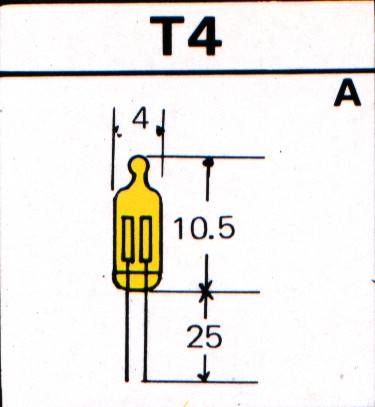

T4x10L 65 0.3 150 300 25,000 4 10.5 A

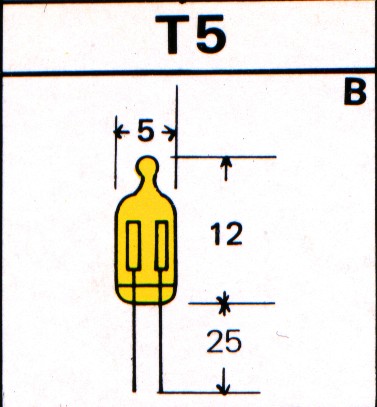

T5x14L 65 0.3 150 300 25,000 5 12 B

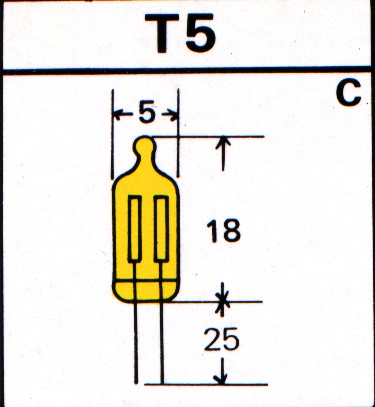

T5x18L 65 0.3 150 300 25,000 5 18 C

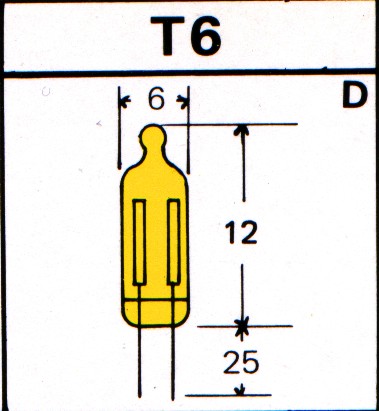

T6x12L 65 0.3 150 300 25,000 6 12 D
T6x16L 65 0.3 150 300 25,000 6 12 D

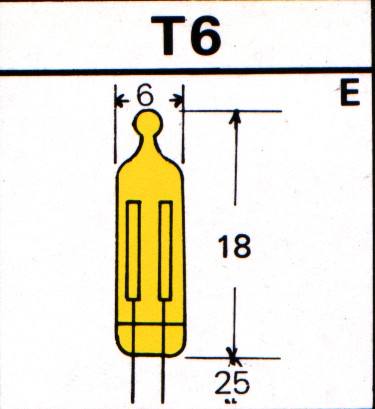

T6x25L 65 0.3 150 300 25,000 6 18 E
T4x10H 90 1.2 33 100 25,000 4 10.5 A
T5x14H 90 1.2 33 100 25,000 5 12 B
T5x18H 90 1.2 33 100 25,000 5 18 C
T6x12H 90 1.2 33 100 25,000 6 12 D
T6x16H 90 1.2 33 100 25,000 6 16 D
T6x25H 90 1.2 33 100 25,000 6 18 E

Caution of using neon lamps: Adjust resistance for setting discharge current as fixed standard.
Neon lamps with attached resistors are available as per customer's specification.

Neon Lamps with Plastic Caps E10     E14     BA9S     BAI5D
A B C D E F G H

Lamp No. Circuit AC Volt Design Current mA Built-in Resistor OHM Life Hours Dimension mm Base Figure

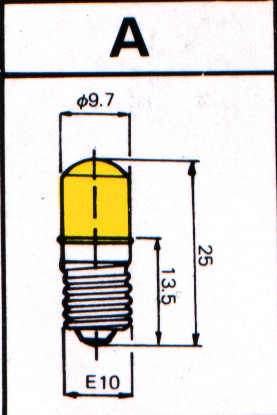

N11025E 105-130 1.5 30K 25,000 10X25 E10 A
N21025E 220-250 1.5 100K 25,000 10X25 E10 A
N31025E 380 1.2 470K 25,000 10X25 E10 A

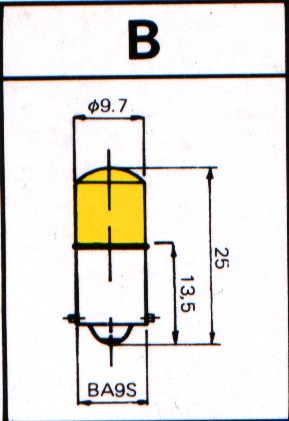

N11025B 105-130 1.5 30K 25,000 10X25 BA9S B
N21025B 220-250 1.5 100K 25,000 10X25 BA9S B
N21025B 380 1.2 470K 25,000 10X25 BA9S B

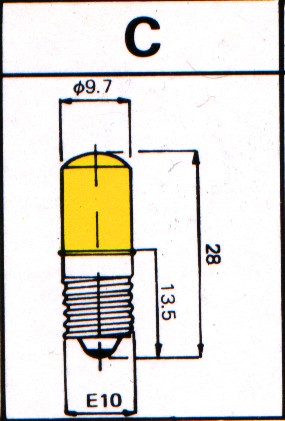

N31025B 105-130 1.5 30K 25,000 10X28 E10 C
N21028E 220-250 1.5 100K 25,000 10X28 E10 C
N31028E 380 1.2 470K 25,000 10X28 E10 C

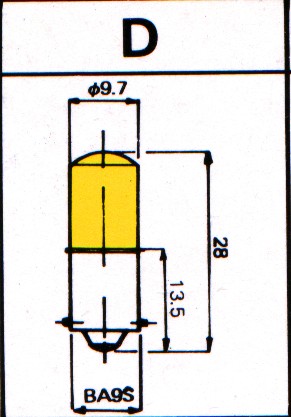

N11028B 105-130 1.5 30K 25,000 10X28 BA9S D
N21028B 220-250 1.5 100K 25,000 10X28 BA9S D
N31028B 380 1.2 470K 25,000 10X28 BA9S D

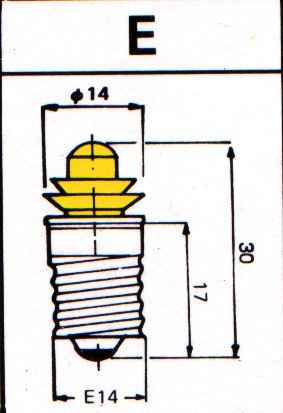

N11430E 105-130 1.5 30K 25,000 14X30 E14 E
N21430E 220-250 1.5 100K 25,000 14X30 E14 E
N31430E 380 1.2 470K 25,000 14X30 E14 E

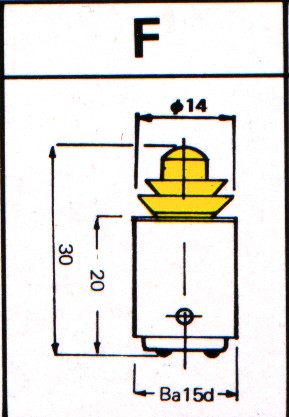

N11430B 105-130 1.5 30K 25,000 14X30 BA15D F
N21430B 220-250 1.5 100K 25,000 14X30 BA15D F
N31430B 380 1.2 470K 25,000 14X30 BA15D F

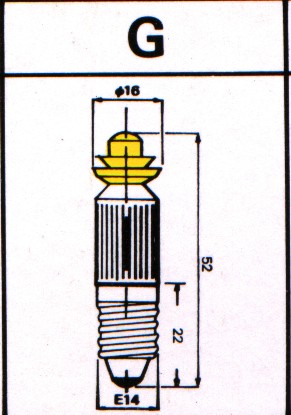

N11652E 105-130 1.5 30K 25,000 16X52 E14 G
N21652E 220-250 1.5 100K 25,000 16X52 E14 G
N31652E 380 1.2 470K 25,000 16X52 E14 G

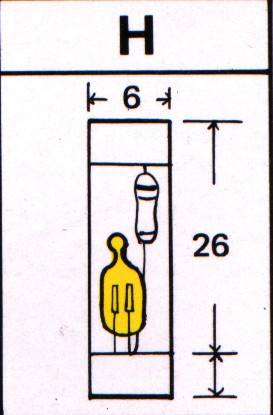

N11652M 105-130 1.2 OR 0.3 33K OR 150K 25,000 6X26 Metal Cap H
N21652M 220-250 1.5 OR 0.5 68K OR 300K 25,000 6X26 Metal Cap H
N31652 380 1.2 470K 25,000 6X26 Metal Cap H

All the above lamps are incorporated with neon lamps of high brightness in orange color.
Lamps without built-in resistors are also available.
Neon lamps with various other types of filters are available.
